Gsertel will be at MWC at booth 6E82!
Gsertel is attending MWC to showcase its revolutionary mobile network analyzer, Hexylon Gamma

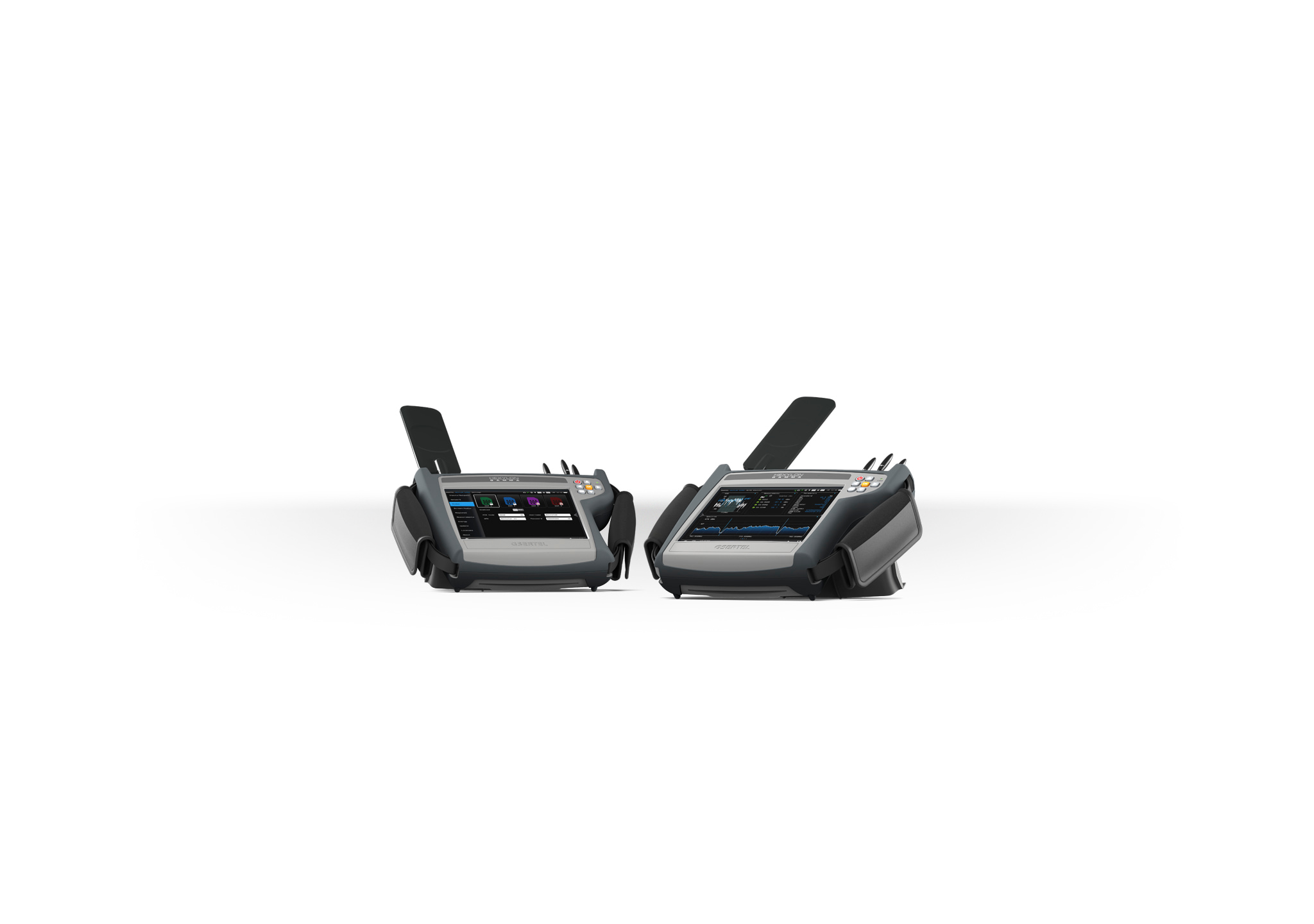

HEXYLON GAMMA
-
Powerful scan and learning plan features.
-
Comprehensive Signal Analyzer.
-
Voice and Data Quality of Service Tests.
-
Advanced Drive/Walk Test functions.
-
MultiSIM: Active measurements with different operators thanks to its 4 SIM card slots.
-
All in a single, light, and ergonomic device.
Hexylon Gamma is the first mobile network analyzer capable of performing active measurements with up to 4 SIM cards for calls and speed tests, as well as passive measurements without a SIM card for spectrum analysis, coverage, beams, and other network analyses.
Our device has been developed with field technicians in mind–professionals who need to analyze mobile networks quickly and accurately while relying on a robust, portable, and easy-to-use tool. That's why Hexylon Gamma inherits all the advantages of Hexylon:
- Ease of use with its multi-touch display.
- Field-replaceable, independently rechargeable battery.
- Cloud integration for storing and sharing measurement data.
- Report Engine that automatically generates measurement reports in PDF, coverage maps in KML, and more.
But that’s not all! Our R&D team has created a true "all-in-one" solution. Hexylon Gamma combines both active and passive measurements in a single device weighing just over 2kg.
Mobile network technicians will have all the tools they need to check and verify network status without requiring additional mobile devices or heavy equipment.
Designed to meet the demands of deploying and maintaining 5G, 4G, 3G, and 2G networks, Hexylon Gamma delivers unmatched performance with its intuitive interface, advanced Drive and Walk Test functionalities, and powerful Task Planner.
Moreover, Hexylon Gamma evolves with market needs through simple software updates, ensuring compatibility with the latest technological demands.
Without a doubt, Hexylon Gamma is an essential tool for field technicians seeking precision and speed in mobile network validation and analysis.
Discover everything Hexylon Gamma can do for you! Get in touch to request additional information or schedule a personalized demonstration.
Highlights
Introducing Hexylon Gamma
Watch this video and see how Hexylon Gamma simplifies the work of mobile network technicians. With its ability to perform both active and passive measurements in a single, lightweight device, it eliminates the need for multiple tools.
Features
Supported Technologies:
- 5G/NR
- 5G Broadcast
- 4G/LTE
- 3G/UMTS
- 2G/GSM
Designed for field use:
- Compact and lightweight.
- Portable and ergonomic. Perfect for on-the-go use.
- Passive and active measurement in a single device.
- MultiSIM: 4 SIM card slots.
- Operating on 8” multitouch screen. Everything flows intuitively through naturalness in the gestural commands.
- Mosaic exclusive feature. With up to 6 widgets fully customizable by user.

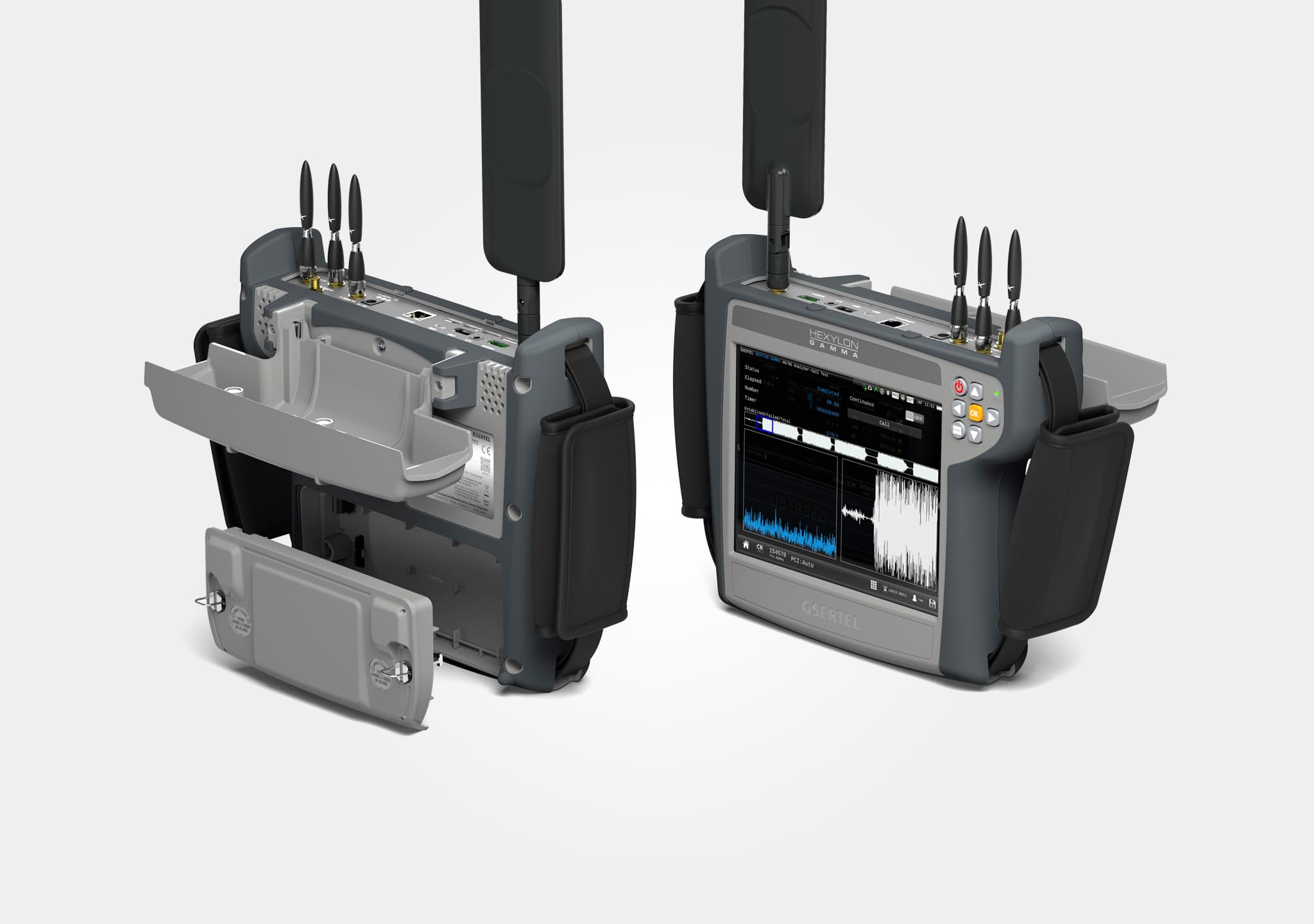

- Field-replaceable and separately rechargeable battery. Ideal for technicians who need to work in remote locations where there is no access to a power outlet.
- “Cloud” integrated management environment. Which allows technicians to easily store and access measurement data in the cloud, making it easy to share and collaborate with other team members.
- Versatile Drive Test function. Internal GPS. Initiation by time interval or distance, saving multi-channel measurements, and simultaneous PCI detection.
- Powerful post-processing. Automated generation of maps with PCI/Channel/Power filtering, available online or in KML format, and Excel or PDF.
- Comprehensive Job Planner function. Automated measurement taking in different scenarios.

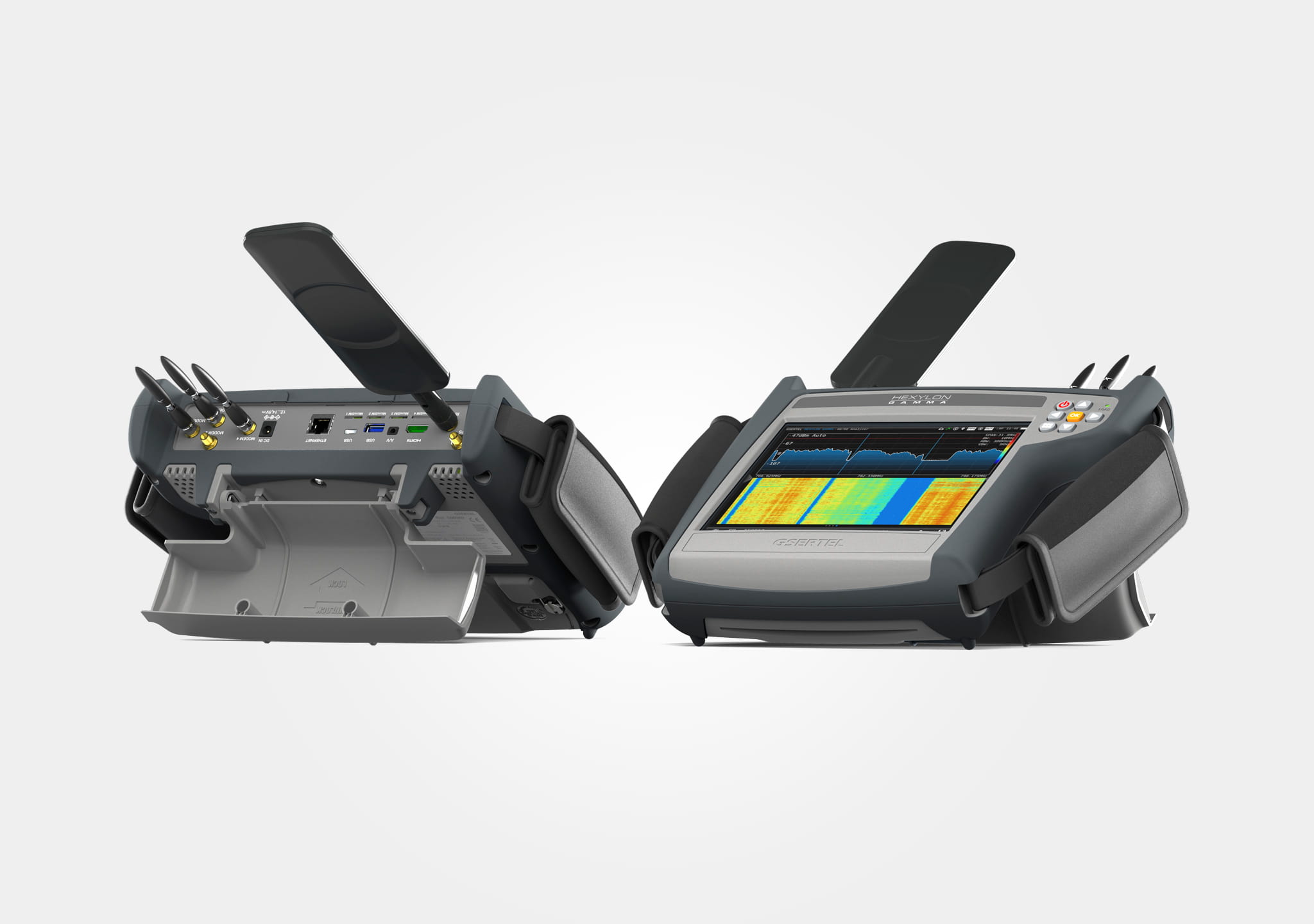

Connectivity:
- 1x SMA connector for passive measurements antenna.
- 4x SMA connectors for active measurements antennas.
- HDMI output.
- Ethernet IP input for remote control.
- Headphone output.
- USB for data transfer.
- GPS (internal antenna and connector for external antenna).
- Wi-Fi.
Functions:
- SSB spectrum display.
- Real Time Spectrum Analysis (RTSA): provides a continuous and detailed view of real-time signals, essential for identifying interference in RF signals, which is critical in mobile telecommunications.
- Operator and CellID identification.
- 5G SA/NSA mode display.
- Complete tree view of decoded signaling information (MIB, SIB).
- Beam Analysis: Detects multiple PCIs on the same frequency, measures RSRP for each beam, and performs time and distance analysis using internal GPS.
- Active Measurements: RSSI & SINR, IP info, call tests, speed tests.
Advanced features
Active and passive measurements: Hexylon Gamma enables combining active measurements (by registering on operator networks with up to 4 SIM cards) with passive SIM-less measurements. This capability ensures a comprehensive and accurate analysis of mobile networks in any environment.
Ergonomic and portable design: Hexylon Gamma combines lightness and portability with a robust, ergonomic structure, ideal for long fieldwork days. Its 8-inch touchscreen with gesture controls provides an intuitive and efficient user experience.
Swappable battery: with a field-replaceable battery and independent charger, Hexylon Gamma ensures uninterrupted workdays.
Versatility for all scenarios: designed to operate in a wide range of scenarios –from stadiums and industrial environments to private and broadcast networks, both indoors and outdoors– Hexylon Gamma guarantees reliable results in the most challenging environments.
Advanced Drive and Walk Test Functions. Its powerful Drive and Walk Test features include:
- Measurement initiation by time interval or distance.
- Detection of multiple PCIs on the same frequency.
- Automatic map generation in KML format and comprehensive PDF/CSV reports.
Exclusive mosaic feature: up to six customizable widgets with all the information: spectrum, SSB, measures, parameters, beams analysis, signalling data, etc.
Call Test: easily performs call tests to validate network performance, including call failure statistics and call durations.
Persistent Spectrum: identifies interferences and other transient events that are often missed in a conventional spectral analysis.
Drive Test: comprehensive Drive Test function with maps automatically generated in KML format, with point filtering by PCI, channel, or power.
Beams: Hexylon Gamma's beam analysis allows to evaluate the synchronization of the base stations by temporarily analyzing each beam, using the internal GPS signal as a reference. This function displays a list of received beams, providing detailed information such as PCI, beam number, RSRP and delay or distance.
Speed Test: effectively verifies upload and download speeds as well as network latency. View current measurements and access historical data within a defined time interval.
Job Planner: Customize measurement taking in different scenarios, achieving consistent and reliable results in record time.
Walk Test: designed to easily and effectively analyze mobile networks in all scenarios, both indoor and outdoor, no matter how complex.
Benefits
- All-in-One: Active and passive measurements in a single device weighing just over 2 kg, with no need for additional mobile devices or heavy equipment.
- Fast and Reliable Results: Optimizes work time with real-time automation and analysis tools.
- Total Adaptability: Compatible with multiple scenarios and environments.
- Continuous Evolution: Regular updates expand the device’s capabilities.
- Ease of Use: Intuitive design reduces the learning curve
Documentation
Request quotation
Please fill out the following form. Our sales team will contact you as soon as possible to provide you with a quote for our Hexylon Gamma and to answer any questions you may have.
