Cutting-edge solutions for DAB
Gsertel: Cutting-edge equipment to monitor and measure DAB/DAB+ signals, ensuring optimal service quality
RCS 100 DAB

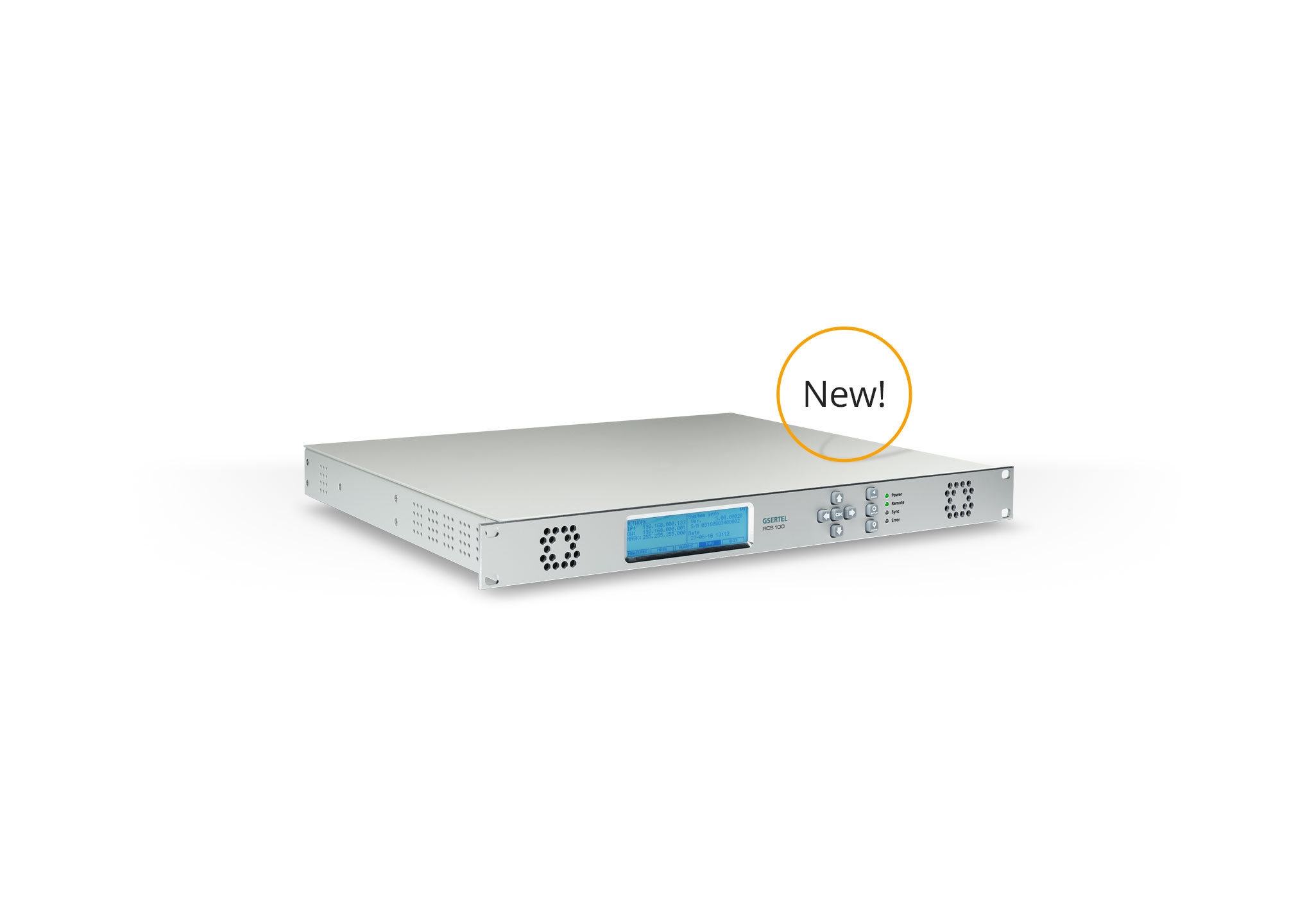

Gsertel’s RCS DAB is a network professional monitoring platform that allows the remote, proactive and real-time DAB/DAB+ digital radio signal monitoring, both at RF and transport levels.
With a compact format, 1RU, all the processing and analysis necessary to obtain the monitoring results is done on the equipment, not needing any additional element except a standard web browser to display the information.
RCS DAB is designed for a 24x7 monitoring signal, allowing to ensure the availability of services in a DAB/DAB+ network.
The intuitive web interface of the RCS, which allows an easy and quick access to all functions, coupled with unique features such as the powerful spectral analysis and capabilities of streaming or ETI (Emsemble Transport Interface) signal recording, make the RCS DAB an ideal solution for headend monitoring, transmission sites or locations on the field.
Highlights
Features
Connectivity
- Signal inputs: 1 x RF, 1 x ETI (optional 1xRF+1xETI), 1 x IP GE RFJ45 (up to 4 EDI), 1 x (Backup) GE RJ45.
- Synchronism: 1 PPS, 10 MHz.
- Ethernet (FE) port for management.
- HDMI output.
- USB port.
RF Analysis
- Signal quality measures: SNR, FIC MER, MSC MER, FIC BER, MSC BER, Shoulders.
- Analysis by channel or multiple channels polling.
- Real-time spectrum.
- Constellation representation.
- Alarm log (real time) and representation (temporal evolution).
ETI Analysis
- Detailed analysis of all the services.
- Services Tree View.
- FIG tables decoding.
- ETI-LI recording.
- SlideShows visualisation.
- Audio streaming via IP.
Spectrum
A complete spectrum analyzer, that allows to enable and configure the ETR 302077 mask.
Treeview
Shows the information on the structure of services and their components, including the description and content of branches; as well as the information of the SI (Service Information), the PAD (Associated Data Program) and its sub-structures. The FIG (Fast Information Groups) is shown in this feature, as well.
Bitrate
This function allows us to see in detail bitrate values for the selected channel and all its services.
Advanced features
- Simultaneous and real-time processing of all inputs (300 Mbps maximum).
- “All in One” screen that allows analyzing at a glance the status of a channel from several points of view: radiofrequency, transport and alarms.
- ETI-LI Analysis.
- Advanced measure of echoes, with masks in amplitude and delay.
- Full band spectrum analyzer (5MHz-1GHz) with mask function and automatic alarm.
- SFN drift measurement.
- Accurate measurement (<10 Hz) of the frequency Offset.
- Powerful historical analysis of measurement and analysis of alarms.
- ETI recording.
- Remote control application in HTML5.
- Full management through SNMP v2.0.
- Electronic Program Guide
- Loudness metering according EBU Tech Doc 3341
- Audio Silence Detection
- QoS measures and alarms
- Conditional Access Module (CAM) support.
All In One RF
All the RF channel analysis and measurement information summarized at a glance.
Polling
Using this feature, the RCS is able to monitor sequentially all the channels that the user has selected in the channel plan. Available for both RF and IP inputs.
All In One IP
All the information of a IP channel in one window: pkt arrival maximum and minimum, UDP and IP payload bitrates, and IP jitter graphical representation, and current measures, services information, list of alarms and slideshows.
Benefits
- Proactive detection of signal problems.
- Time reduction in distribution and transmission network diagnostic and troubleshooting.
- Attractive cost-benefit solution for the signal in-depth analysis.
- Very intuitive and user friendly interface.
- Flexible and scalable in functionality architecture (software licenses).
- High accuracy in measurement.
- Full integration with third parties’ NMS.
- Availability of the latest features through the automatic detection of new software versions.
Documentation
Live demo
To get access to a Live Demo of the RCS 100 DAB please fill out and submit the form below. You will receive an email with the login information you need. (*All fields are required)
If you already have the login information to our RCS 100 DAB Live Demo, click the link below and login with your user and password.
