RCS 400 DVB-C
Gsertel’s RCS 400 DVB-C is a network professional monitoring platform that allows the remote, proactive, simultaneous and real-time of up to 4 DVB-C digital television channels, both at RF and transport levels.
With a compact format, 1RU, all the processing and analysis necessary to obtain the monitoring results is done on the equipment, not needing any additional element except a standard web browser to display the information.
The capability of parallel processing up to 4 multiplex and simultaneously by RF, ASI or IP, makes the RCS 400 a powerful tool for early detection and diagnosis of potential failures in a DVB-C network.
The intuitive web interface of the RCS, which allows an easy and quick access to all functions, coupled with unique features such as the powerful spectral analysis and capabilities of streaming or Transport Stream recording, make the RCS 400 an ideal solution for headend, sub-headend monitoring or transmission nodes on the field.
Features
Connectivity

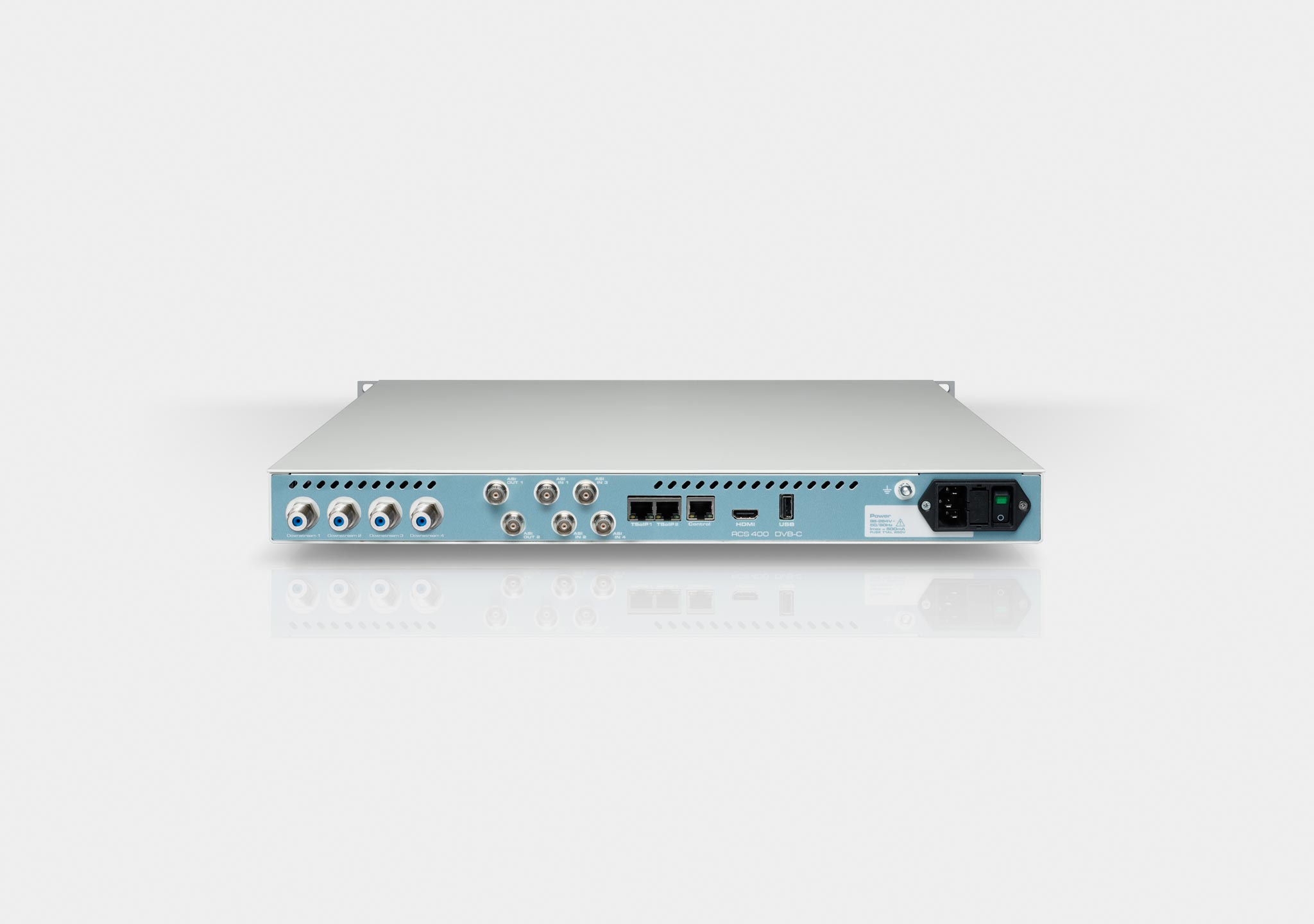

- Signal inputs: 4 x RF F75 Ω, 4 x ASI BNC 75 Ω, 1 x IP GE RFJ45 (up to 4 TS), 1 x (Backup) GE RJ45.
- Signal outputs: 4 x ASI BNC 75 Ω.
- Ethernet (FE) port for management.
- HDMI output.
- USB port.
RF Analysis
- Signal quality measures: Power, C/N, MER, BER, shoulders.
- Analysis by channel or multiple channels polling.
- Real-time spectrum.
- Constellation representation.
- Alarm log (real time) and representation (temporal evolution).
TS Analysis
- Detailed bitrate of all services.
- Analysis of the table repetition.
- Quality analysis.
- Tree view of services.
- Tables decoding.
- Transport Stream recording.
- Video screenshots.
- Video streaming up to 5 simultaneousdestinations.
- 1st, 2nd and 3rd priority alarms according to TR 101 290 standard.
All in One
All the channel analysis and measurement information summarized at a glance.
Live Streaming
TS real time streaming up to 5 destination IP´s simultaneously.
Full Spectrum
Spectrum analyzer from 5 Hz to 1 GHz with mask function and automatic alarm.
Advanced features
- Simultaneous and real-time processing of all inputs (300 Mbps maximum).
- “All in One” screenthat allows analyzing at a glance the status of a channel from several points of view: radiofrequency, transport and alarms.
- Full band spectrum analyzer (5Hz-1GHz) with mask function and automatic alarm.
- Accurate measurement (<10 Hz) of the frequency Offset.
- Measurement and temporal representation of the PCR Jitter.
- Powerful historical analysis of measurement and analysis of alarms.
- TS manual recording and triggered by alarms.
- Remote control application in HTML5.
- Full management through SNMP v2.0.
- Electronic Program Guide.
- Loudness metering according EBU Tech Doc 3341
- Black and Freeze Detection.
- Audio Silence Detection.
- QoS measures and alarms.
- Conditional Access Module (CAM) support.
Polling
Automatic measurement of multiple channels over an input.
Alarms
Temporal representation, filtering and list (grouped by type) alarm functions.
TS Recorder
Transport Stream manual or automatic recording function (triggered by alarms).
Benefits
- Proactive detection of signal problems.
- Time reduction in distribution and transmission network diagnostic and troubleshooting.
- Attractive cost-benefit solution for the signal in-depth analysis.
- Very intuitive and user friendly interface.
- Flexible and scalable in functionality architecture (software licenses).
- High accuracy in measurement.
- Full integration with third parties’ NMS.
- Availability of the latest features through the automatic detection of new software versions.
